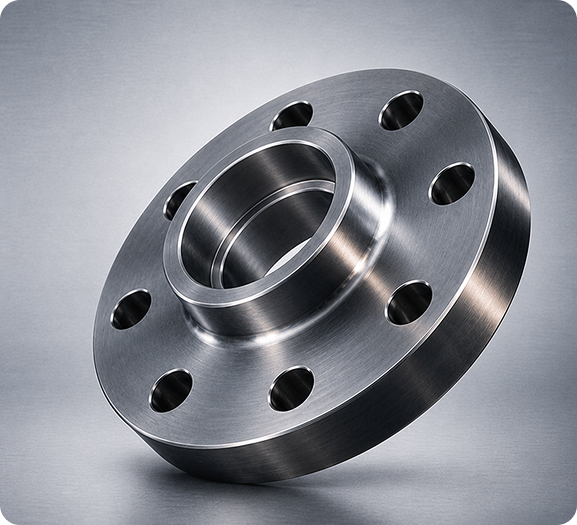

Socket Weld Flanges

Socket Weld Flanges are high-strength pipe flanges designed with a recessed socket connection where pipes are inserted and welded for secure joints. Manufactured from premium materials, they provide excellent durability, pressure resistance, corrosion protection, and leak-proof performance for oil & gas, petrochemical, chemical processing, power plants, marine, and industrial piping applications.

High Pressure

Secure Socket Fit

Precision Machined

ASME Compliant

Compact Design

Request a Quote

Overview

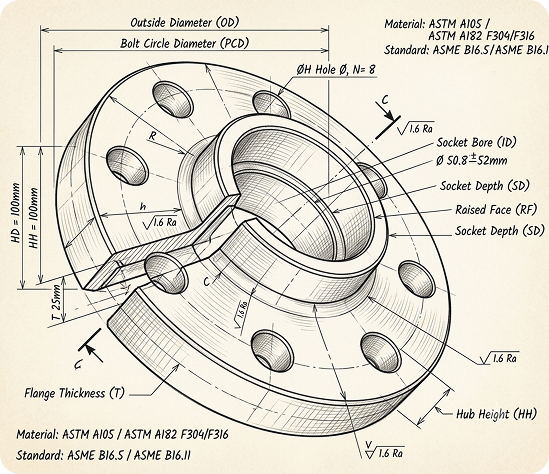

Socket Weld Flanges are precision-engineered flanges designed for small-diameter, high-pressure piping systems. The pipe is inserted into the socket area of the flange and joined with a fillet weld, creating a strong and reliable connection.

These flanges provide excellent structural strength, accurate alignment, and reduced leakage risks compared to conventional connections. Their compact design and superior performance make them ideal for applications involving high pressure and critical service conditions.

Veltronova Industries supplies premium quality Socket Weld Flanges manufactured using advanced technology and high-grade materials. Available in various sizes, pressure ratings, materials, and international standards, our Socket Weld Flanges are widely used in oil & gas, refineries, petrochemical plants, chemical industries, power generation, offshore, marine, and process piping applications.

Technical Specifications

Material	Grades Available	Standards	Size Range	Pressure Class	Types	Face Finish
Carbon Steel Socket Weld Flanges	ASTM A105, A350 LF2	ASME B16.5, ANSI, ASTM	½” – 24”	Class 150 – Class 2500	Socket Weld Raised Face, Socket Weld RTJ	RF, RTJ, FF
Stainless Steel Socket Weld Flanges	SS 304/304L, 316/316L, 321, 347, 904L	ASTM A182, ASME B16.5	½” – 24”	Class 150 – Class 2500	Socket Weld Pipe Flange	Raised Face, Polished Finish
Alloy Steel Socket Weld Flanges	ASTM A182 F5, F9, F11, F22, F91	ASTM A182, ANSI B16.5	½” – 24”	Class 150 – Class 2500	High Pressure Socket Weld Flange	RF, RTJ Finish
Duplex / Super Duplex Socket Weld Flanges	UNS S31803, S32205, S32750, S32760	ASTM A182	½” – 24”	Class 150 – Class 1500	Socket Weld Industrial Flange	Pickled & Passivated
Inconel Socket Weld Flanges	Inconel 600, 601, 625, 718	ASTM B564	½” – 12”	Class 150 – Class 1500	Socket Weld Flange	Polished, Machined Finish
Hastelloy Socket Weld Flanges	Hastelloy C22, C276	ASTM B564	½” – 12”	Class 150 – Class 1500	Socket Weld Connection Flange	Polished, Pickled
Monel Socket Weld Flanges	Monel 400, K500	ASTM B564	½” – 12”	Class 150 – Class 1500	Socket Weld Pipe Flange	Machined Finish
Titanium Socket Weld Flanges	Titanium Gr.1, Gr.2, Gr.5	ASTM B381	½” – 12”	Class 150 – Class 1500	Socket Weld Flange	Pickled, Polished
