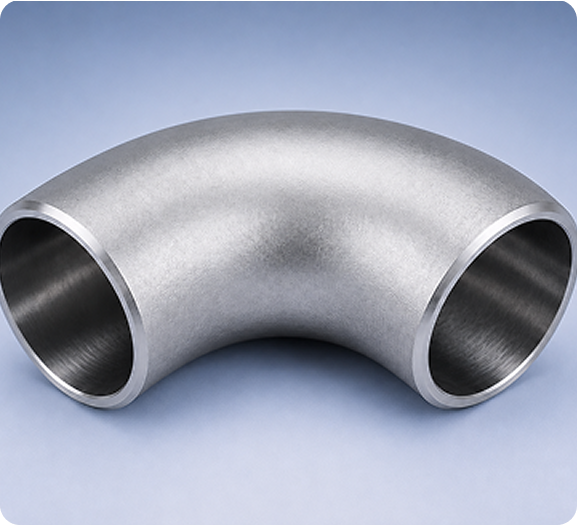

Elbow Buttweld Fittings
Elbow Buttweld Fittings are precision-engineered pipe fittings designed to change the direction of flow within piping systems. Manufactured from high-quality materials, they provide excellent strength, corrosion resistance, pressure handling capability, and leak-proof performance for oil & gas, petrochemical, power plants, chemical processing, marine, and industrial applications.
Overview
Elbow Buttweld Fittings are widely used piping components designed to change the direction of pipelines while maintaining smooth and efficient flow. These fittings are commonly available in different angles such as 45-degree, 90-degree, and 180-degree elbows depending on piping requirements.
Manufactured using premium quality raw materials and advanced production technology, Elbow Buttweld Fittings offer superior mechanical strength, dimensional accuracy, and excellent resistance against high pressure, temperature, and corrosive environments.
Our Elbow Buttweld Fittings are available in various sizes, schedules, radius types, material grades, and specifications. They are widely used in oil & gas refineries, petrochemical plants, chemical industries, power generation facilities, marine sectors, and heavy engineering applications.
1.png)

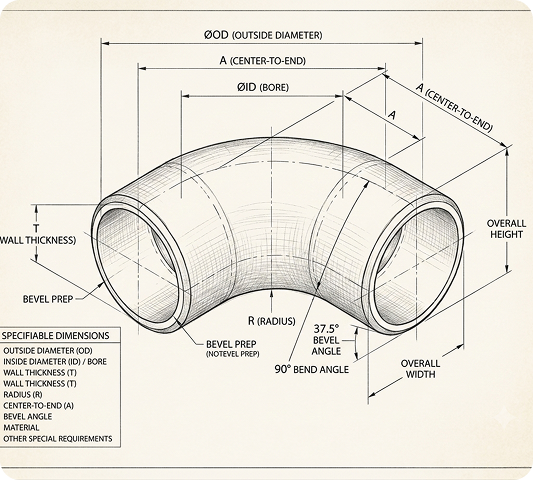

Technical Specifications
| Material | Grades Available | Standards | Size Range | Wall Thickness / Schedule | Types | End Finish |
|---|---|---|---|---|---|---|
| Carbon Steel Elbow Fittings | ASTM A105, A234 WPB, A420 WPL6 | ASTM, ASME B16.9, MSS-SP-43 | ½” – 48” | SCH 10 – SCH 160 | 45° Elbow, 90° Elbow, 180° Elbow, Long Radius, Short Radius | Plain End, Beveled End |
| Stainless Steel Elbow Fittings | SS 304/304L, 316/316L, 321, 347, 904L | ASTM A403, ASME B16.9 | ½” – 48” | SCH 10 – SCH 160 | 45° Elbow, 90° Elbow, Long Radius, Short Radius | Plain End, Beveled End, Polished |
| Alloy Steel Elbow Fittings | ASTM A234 WP5, WP9, WP11, WP22, WP91 | ASTM A234, ASME B16.9 | ½” – 48” | SCH 10 – SCH 160 | 45° Elbow, 90° Elbow, 180° Elbow | Plain End, Beveled End |
| Duplex / Super Duplex Elbow Fittings | UNS S31803, S32205, S32750, S32760 | ASTM A815, ASME B16.9 | ½” – 24” | SCH 10 – SCH 160 | 45° Elbow, 90° Elbow, Long Radius | Pickled & Passivated |
| Inconel Elbow Fittings | Inconel 600, 601, 625, 718 | ASTM B366 | ½” – 12” | SCH 10 – SCH 160 | 45° Elbow, 90° Elbow | Polished, Pickled |
| Hastelloy Elbow Fittings | Hastelloy C22, C276 | ASTM B366 | ½” – 12” | SCH 10 – SCH 160 | 45° Elbow, 90° Elbow | Polished, Pickled |
| Monel Elbow Fittings | Monel 400, K500 | ASTM B366 / B564 | ½” – 12” | SCH 10 – SCH 160 | 45° Elbow, 90° Elbow | Polished, Mill Finish |
| Titanium Elbow Fittings | Titanium Gr.1, Gr.2, Gr.5 | ASTM B363 | ½” – 12” | SCH 5 – SCH 80 | 45° Elbow, 90° Elbow | Pickled, Polished |
Features & Advantages of Elbow Buttweld Fittings
Designed to reduce pressure loss for efficient fluid flow.
Manufactured to tight tolerances for perfect alignment .
Beveled ends ensure strong weld joints with excellent structural integrity.
Engineered to withstand demanding pressure across critical applications.
Manufactured from alloy materials for long-lasting durability.
Built for reliable performance in harsh industrial environments.
Applications Across Industries
Oil & Gas
Used in upstream, midstream and downstream pipeline systems.
Petrochemical
Used in upstream, midstream and downstream pipeline systems.
Power Generation
Used in upstream, midstream and downstream pipeline systems.
Chemical Processing
Used in upstream, midstream and downstream pipeline systems.
Marine & Offshore
Used in upstream, midstream and downstream pipeline systems.
Water Treatment
Used in upstream, midstream and downstream pipeline systems.
Frequently Asked Questions
Technical questions on our Elbow Buttweld Fittings, answered by our engineering team.
Elbow Buttweld Fittings are used to change the direction of flow in piping systems while maintaining strength, pressure capacity, and smooth fluid movement.
Common types include 45 Degree Elbow, 90 Degree Elbow, 180 Degree Elbow, Long Radius Elbow, and Short Radius Elbow.
They are available in Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Super Duplex Steel, Inconel, Hastelloy, Monel, Nickel Alloy, and Titanium materials.
Elbow Buttweld Fittings are manufactured according to ASME B16.9, ASTM, ANSI, MSS-SP-43, and international industrial standards.
They provide excellent flow direction control, strong welded joints, high-pressure resistance, corrosion protection, durability, and reliable performance in critical piping systems.
